Ms Y Strainer
| Attribute | Details |
|---|---|
| Size (inch) | 12 inch |
| Media | Water |
| Model Name/Number | JYS-MS-125/150/300-*** |
| End Connection | Flange End |
| Pressure | PN-10/16/20 |
| Color | Blue |
| Capacity | 10-20 kg/cm² |
| Bolts & Nuts | Mild Steel (M.S) |
| Connection Standard | Class-150# |
| Cover Gasket | Asbestos |
| Finishing | Smooth |

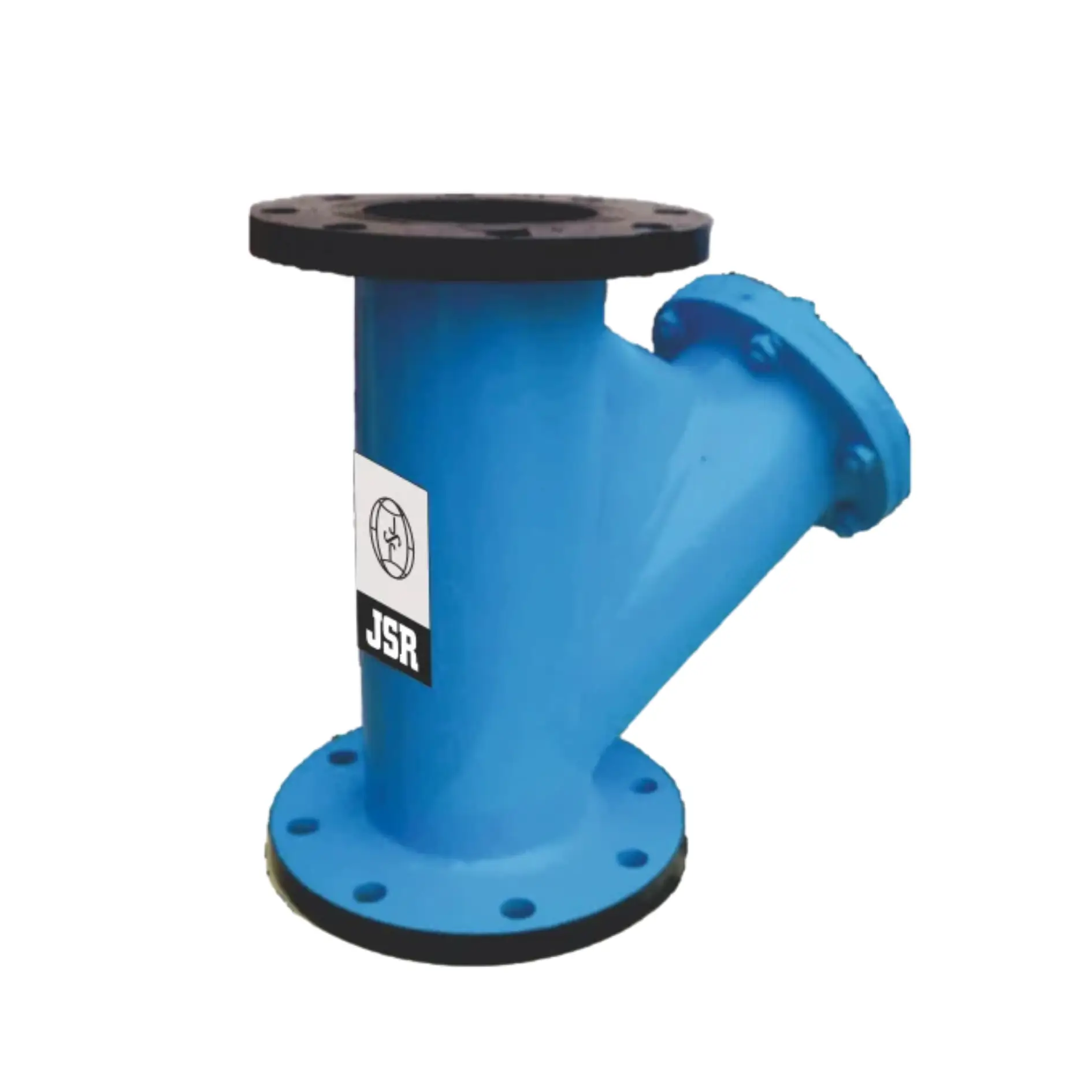

MS Y Strainer
The MS Y Strainer is a durable and cost-effective filtration device designed to remove unwanted solids such as rust, debris, and dirt particles from fluid pipelines. Manufactured from high-quality mild steel (MS), this Y-type strainer ensures strength, reliability, and long service life, making it ideal for industrial applications that demand consistent fluid flow and equipment protection.
Its Y-shaped design provides efficient filtration with minimal pressure drop, ensuring smooth operation of pumps, valves, meters, and other downstream components. The stainless steel mesh or perforated screen is easy to remove and clean, reducing maintenance downtime and extending equipment life.
Technical Specifications
-
Product Name: MS Y Strainer
-
Body Material: Mild Steel
-
Screen Material: Stainless Steel (SS 304 / SS 316 Optional)
-
Design Type: Y Type
-
Size Range: 15mm to 300mm
-
End Connection: Flanged / Screwed (BSP / NPT)
-
Pressure Rating: PN10 / PN16 / Class 150
-
Temperature Range: Up to 200°C
-
Finish: Epoxy Painted / Powder Coated
-
Flow Direction: Horizontal or Vertical
-
Cleaning Access: Removable Cap for Easy Maintenance
-
Country of Origin: Made in India
