Ci Y Strainers 300 MM

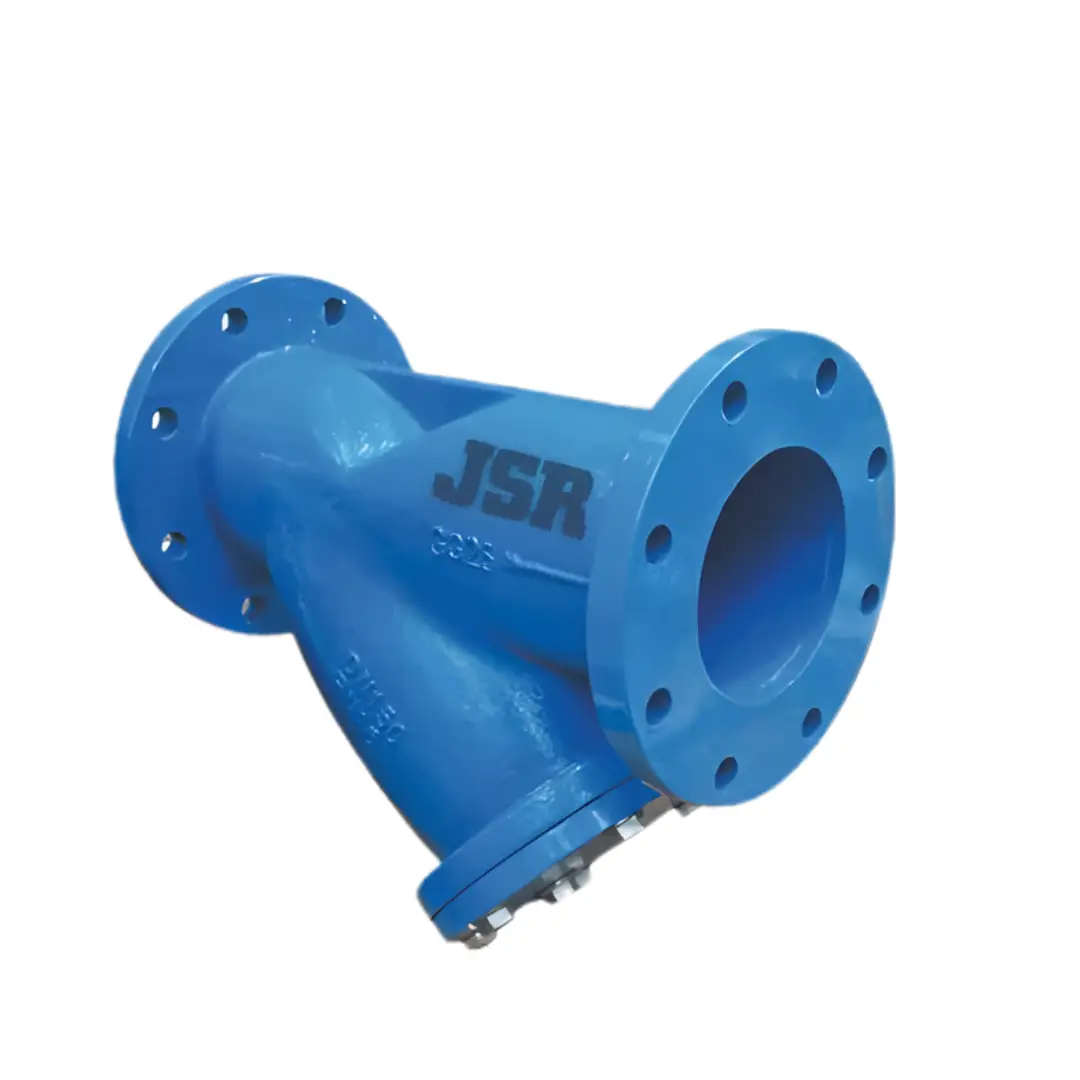

CI Y Strainer 300mm

The Cast Iron (CI) Y Strainer 300mm is a heavy-duty filtration device engineered to eliminate solid impurities, rust, and debris from large industrial pipelines. Built from high-quality cast iron, this Y-type strainer offers exceptional mechanical strength, corrosion resistance, and durability — ensuring reliable operation in high-flow systems.

The Y-shaped body design minimizes pressure drop and ensures smooth flow, while the stainless steel perforated mesh screen efficiently captures suspended particles to protect pumps, valves, and other downstream equipment. Its removable cover enables easy cleaning and maintenance, making it ideal for continuous industrial operations.

Technical Specifications

• Product Name: CI Y Strainer

• Size: 300mm (12 Inch)

• Body Material: Cast Iron

• Screen Material: Stainless Steel (SS 304 / SS 316 Optional)

• End Connection: Flanged (As per ANSI / DIN / IS Standards)

• Pressure Rating: PN10 / PN16

• Temperature Range: Up to 200°C

• Design Type: Y Type

• Finish: Epoxy Painted / Black Coated

• Cleaning Access: Bolted Cap for Easy Maintenance

• Country of Origin: Made in India
