Sant T Type Strainer

Sant T Type Strainer

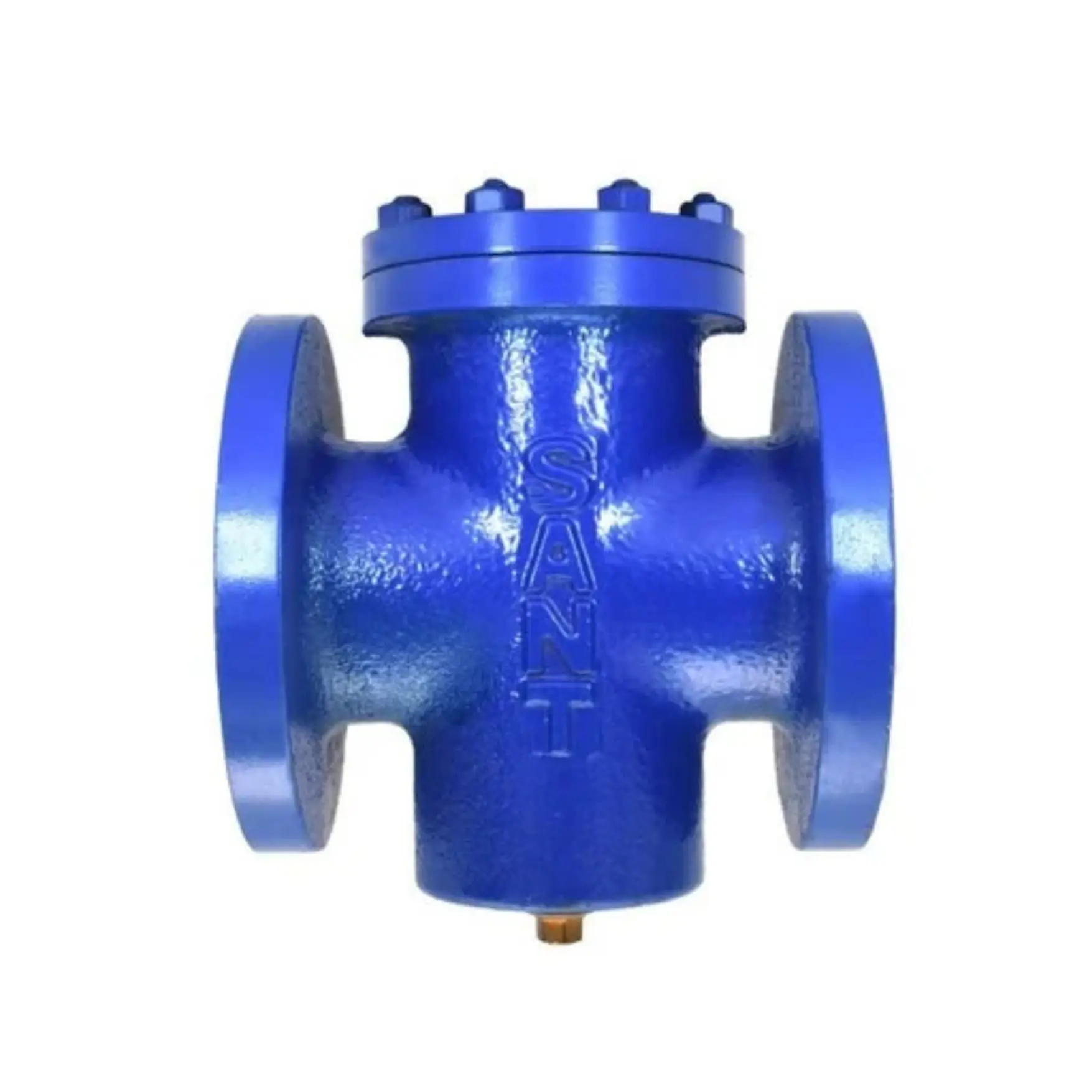

The Sant T Type Strainer is a high-performance industrial filtration unit designed to remove solid impurities, dirt, and debris from liquid and gas pipelines. Manufactured with precision by Sant Valves, this strainer features a T-shaped body that offers a large filtration area and efficient flow distribution with minimal pressure drop.

Built from high-quality materials such as cast iron, carbon steel, or stainless steel, the Sant T Type Strainer ensures superior strength, corrosion resistance, and long service life. The stainless steel perforated or mesh screen effectively traps particles, while the removable cover allows for easy cleaning and maintenance.

Ideal for industrial water systems, chemical processing, oil & gas, and HVAC pipelines, this strainer guarantees reliable performance and equipment protection in demanding applications.

Technical Specifications

• Product Name: Sant T Type Strainer

• Brand: Sant

• Design Type: T Type

• Body Material: Cast Iron / Carbon Steel / Stainless Steel (as required)

• Screen Material: Stainless Steel (SS 304 / SS 316)

• End Connection: Flanged (As per ANSI / DIN / IS Standards)

• Pressure Rating: PN10 / PN16 / Class 150

• Temperature Range: Up to 200°C

• Finish: Epoxy Painted / Natural Polished

• Cleaning Access: Top Cover for Easy Maintenance

• Country of Origin: Made in India
