T Type Basket Strainers

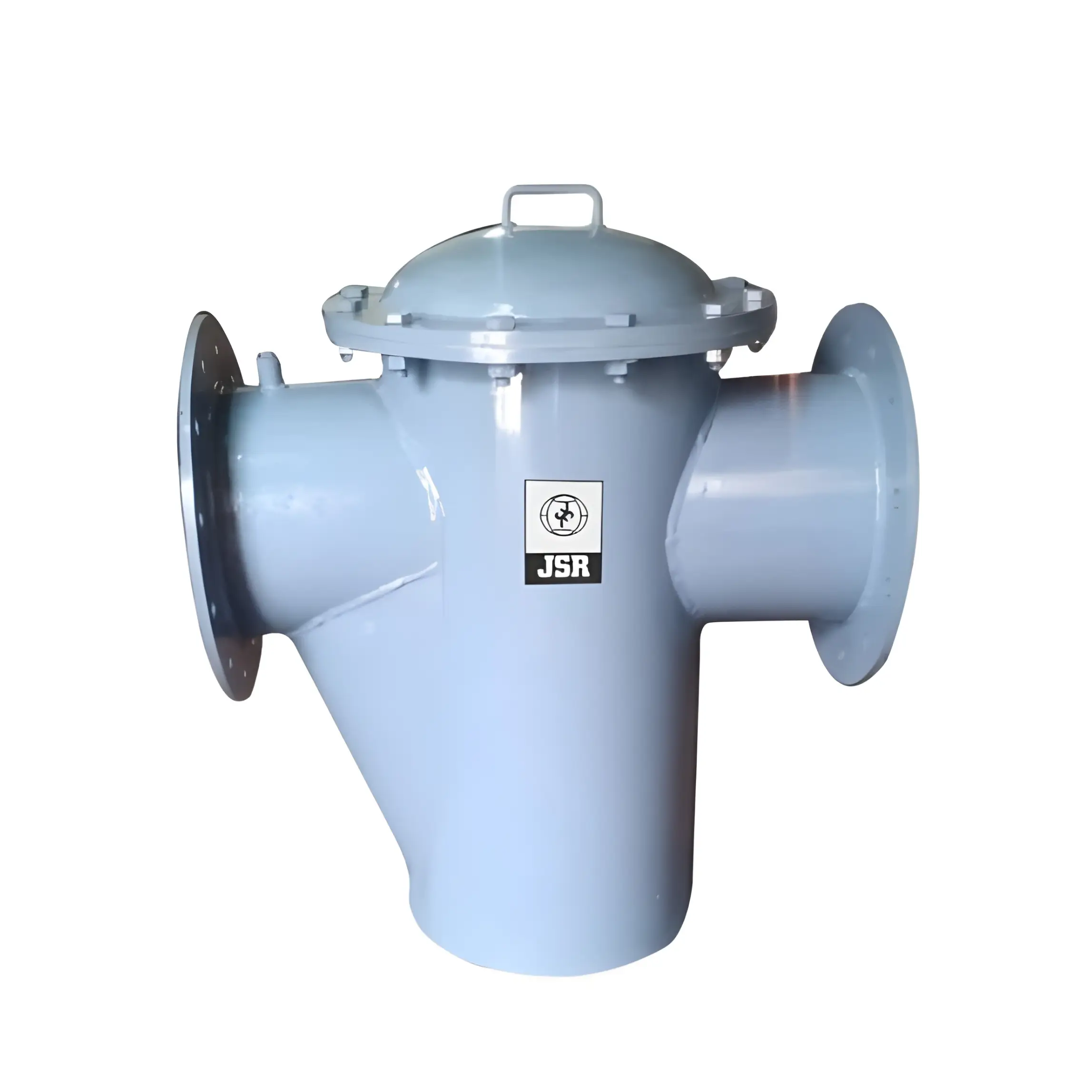

T Type Basket Strainer

The T Type Basket Strainer is a high-efficiency filtration device designed to remove debris, rust, scale, and other solid impurities from pipelines. Its T-shaped body design allows for compact installation and easy maintenance, making it ideal for protecting pumps, valves, meters, and other downstream equipment in industrial systems.

Manufactured using high-quality materials such as cast iron, ductile iron, carbon steel, or stainless steel, the T Type Basket Strainer ensures excellent mechanical strength, corrosion resistance, and long service life. The removable stainless steel perforated or mesh basket facilitates easy cleaning and maintenance without interrupting the flow for extended periods.

This strainer is widely used in water treatment, oil & gas, chemical, HVAC, and process industries, where reliable filtration and continuous performance are essential.

Key Features

• Type: T Type Basket Strainer

• Size Range: 25mm to 600mm (1” to 24”)

• Body Material: Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel

• Screen Material: Stainless Steel (Perforated / Mesh)

• End Connection: Flanged / Screwed / Butt Welded

• Pressure Rating: PN10 / PN16 / ANSI Class 150 / Class 300

• Temperature Range: -10°C to 200°C (Depending on Material)

• Design Standard: BS / ASME / DIN

• Cleaning Access: Top Cover or Side Cover

• Applications: Water Treatment Plants, HVAC Systems, Oil & Gas Pipelines, Chemical Processing Units, and Industrial Cooling Systems
