Ci Y Strainers 25MM
| Attribute | Details |
|---|---|
| Size (inch) | 12 inch |
| Media | Water |
| Model Name/Number | JYS-MS-125/150/300-*** |
| End Connection | Flange End |
| Pressure | PN-10/16/20 |
| Color | Blue |
| Capacity | 10-20 kg/cm² |
| Bolts & Nuts | Mild Steel (M.S) |
| Connection Standard | Class-150# |
| Cover Gasket | Asbestos |
| Finishing | Smooth |

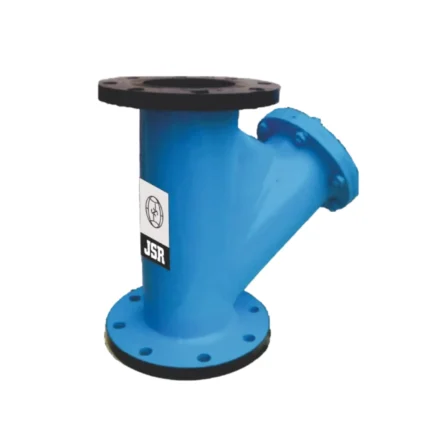

CI Y Strainer 25mm
The Cast Iron (CI) Y Strainer 25mm is a compact and reliable filtration unit designed to remove rust, dirt, and solid particles from liquid and gas pipelines. Constructed from high-grade cast iron, this Y-type strainer ensures excellent durability, mechanical strength, and corrosion resistance, making it ideal for industrial and commercial applications.
Its Y-shaped body design ensures smooth flow with minimal pressure loss, while the stainless steel perforated screen provides effective filtration. The removable cap allows easy cleaning and maintenance, ensuring long-term efficiency and protection for pumps, valves, and meters.
Technical Specifications
-
Product Name: CI Y Strainer
-
Size: 25mm (1 Inch)
-
Body Material: Cast Iron
-
Screen Material: Stainless Steel (SS 304 / SS 316 Optional)
-
End Connection: Flanged / Screwed (BSP/NPT)
-
Pressure Rating: PN10 / PN16
-
Temperature Range: Up to 200°C
-
Design Type: Y Type
-
Finish: Black Painted / Epoxy Coated
-
Cleaning Access: Removable Cap for Easy Maintenance
-
Country of Origin: Made in India
