Ci Y Strainer 100mm
| Attribute | Details |
|---|---|
| Material | Cast Iron |
| Size (inch) | 4 inch |
| Media | Water |
| Model Name/Number | 113 |
| End Connection | Flange End |
| Pressure | PN-16 |
| Color | Blue |
| Capacity | 100MM |
| Bolts & Nuts | Available on Demand |
| Connection Standard | Flanged |
| Cover Gasket | Rubber Gasket |
| Finishing | Smooth |

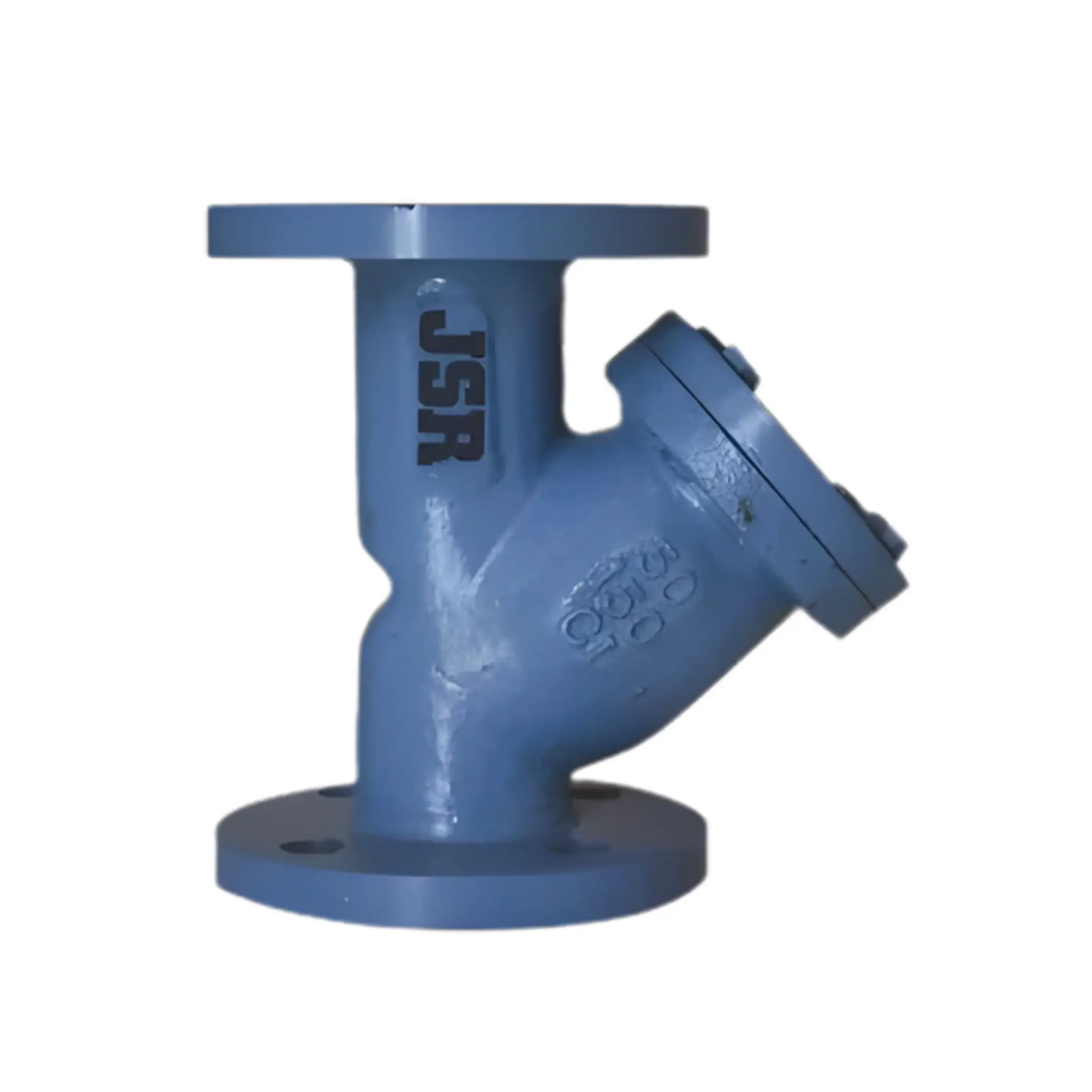

CI Y Strainer 100mm
The Cast Iron (CI) Y Strainer 100mm is a robust and efficient filtration device designed to remove suspended solids, rust, and debris from fluid and gas pipelines. Manufactured from premium-grade cast iron, this Y-type strainer ensures high mechanical strength, corrosion resistance, and long-lasting performance under varying pressure and temperature conditions.
Its Y-shaped body design enables smooth fluid flow with minimal pressure loss, while the stainless steel perforated or mesh screen provides effective filtration to protect pumps, valves, and other downstream equipment. The removable cover allows easy cleaning and maintenance, ensuring continuous and reliable operation.
Technical Specifications
-
Product Name: CI Y Strainer
-
Size: 100mm (4 Inch)
-
Body Material: Cast Iron
-
Screen Material: Stainless Steel (SS 304 / SS 316 Optional)
-
End Connection: Flanged / Screwed (BSP / NPT)
-
Pressure Rating: PN10 / PN16
-
Temperature Range: Up to 200°C
-
Finish: Epoxy Painted / Black Coated
-
Design Type: Y Type
-
Cleaning Access: Bolted Cap for Easy Maintenance
-
Country of Origin: Made in India
