Ms Bucket Strainer

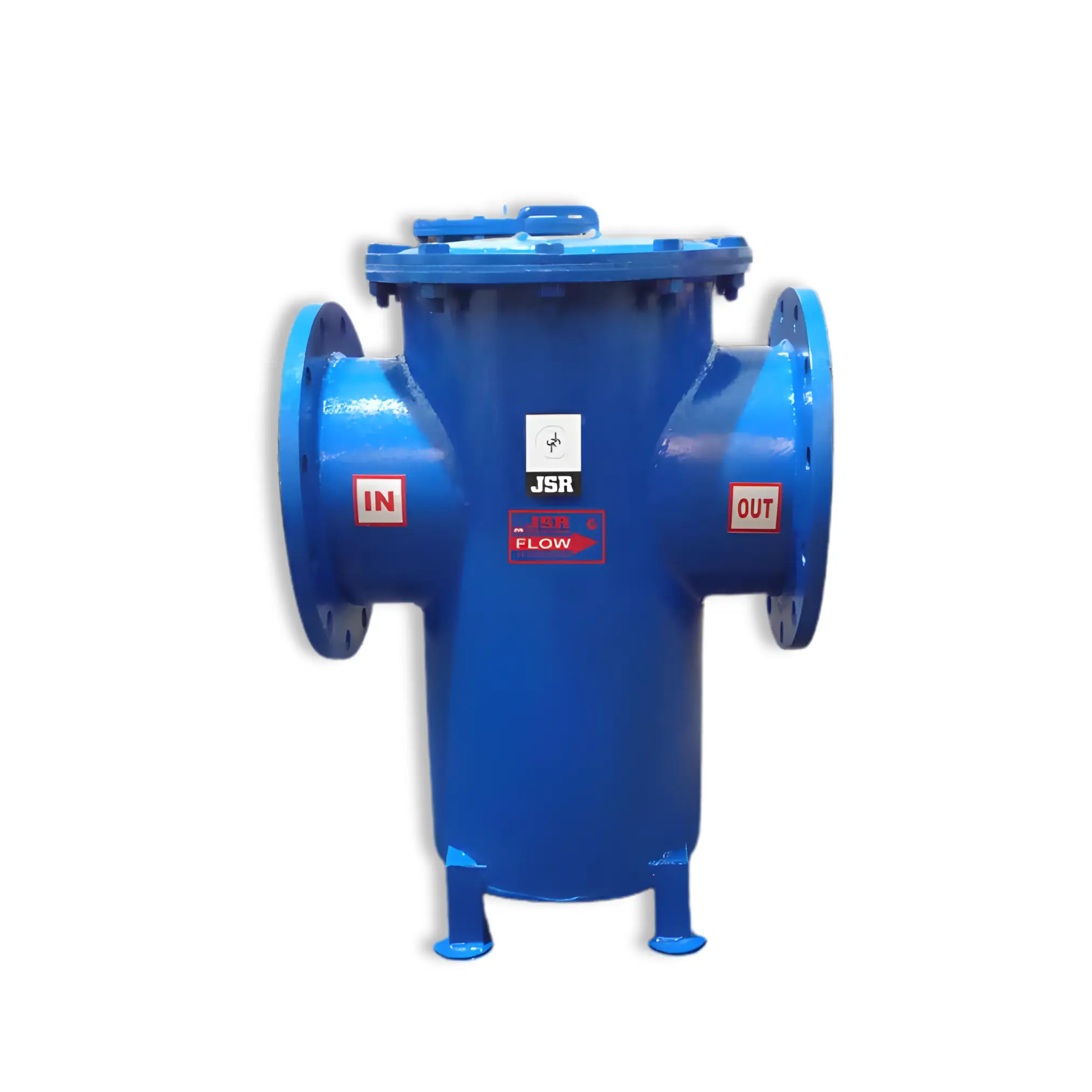

MS Bucket Strainer

The MS (Mild Steel) Bucket Strainer is a durable and efficient filtration device designed to remove dirt, rust, and solid impurities from liquid pipelines. Engineered for high flow capacity and minimal pressure drop, this strainer effectively protects pumps, valves, and other critical equipment in industrial systems.

Constructed from heavy-duty mild steel, it offers excellent mechanical strength and reliability for demanding applications. The bucket-type stainless steel screen ensures effective filtration and easy maintenance — it can be removed, cleaned, and replaced without disrupting system operation. Its robust structure and epoxy-coated finish provide superior resistance to corrosion and wear, extending the strainer’s service life.

Widely used in water treatment plants, HVAC systems, process industries, and power plants, the MS Bucket Strainer is ideal for continuous, heavy-duty industrial applications.

Key Features

• Type: Bucket Type Strainer

• Size Range: 25mm to 600mm (1” to 24”)

• Body Material: Mild Steel (MS)

• Screen Material: Stainless Steel (Perforated / Mesh)

• End Connection: Flanged / Screwed / Butt Welded

• Pressure Rating: PN10 / PN16 / ANSI Class 150

• Temperature Range: Up to 200°C

• Surface Finish: Epoxy Painted / Powder Coated for Corrosion Protection

• Cleaning Access: Removable Top Cover for Easy Maintenance

• Applications: Water Treatment Plants, Cooling Towers, Process Pipelines, Oil & Gas, and HVAC Systems

• Country of Origin: Made in India
