Basket Type Strainers

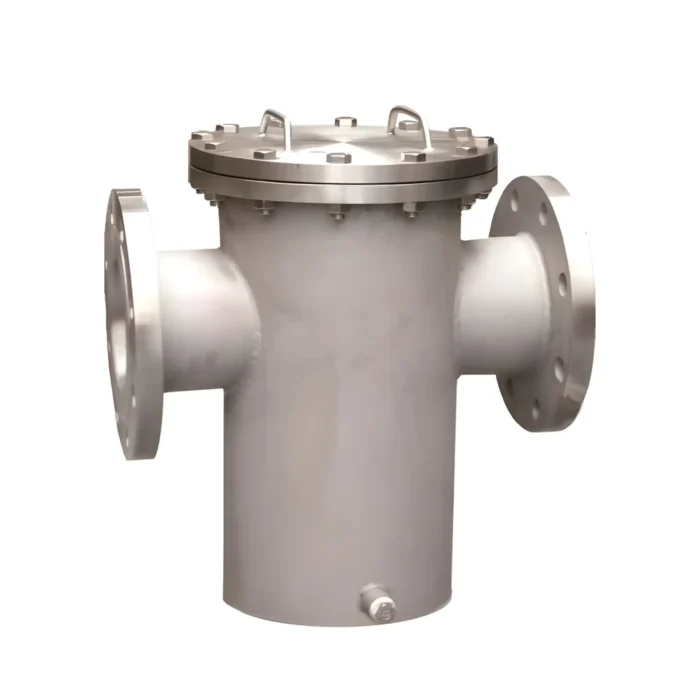

Basket Type Strainer

The Basket Type Strainer is a robust and efficient filtration device designed to remove unwanted solids, rust, and debris from liquid and gas pipelines. It protects pumps, valves, meters, and other downstream equipment from potential damage caused by contaminants, ensuring smooth and reliable system operation.

Constructed from premium materials such as cast iron, ductile iron, carbon steel, stainless steel, or mild steel, the Basket Type Strainer provides high mechanical strength, corrosion resistance, and long service life. Its removable perforated or mesh stainless steel basket allows for easy cleaning and maintenance without interrupting the flow for long durations.

The strainer is suitable for a wide range of industrial, commercial, and utility applications, including water treatment, oil & gas, HVAC, and chemical processing systems.

Key Features

• Type: Basket Type Strainer

• Size Range: 25mm to 600mm (1” to 24”)

• Body Material: Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel / Mild Steel

• Screen Material: Stainless Steel (Perforated / Mesh)

• End Connection: Flanged / Screwed / Butt Welded

• Pressure Rating: PN10 / PN16 / ANSI Class 150 / Class 300

• Temperature Range: -10°C to 200°C (Depending on Material)

• Cleaning Access: Removable Top Cover

• Coating: Epoxy Painted or Powder Coated for Corrosion Protection

• Applications: Water Treatment Plants, Oil & Gas Pipelines, Chemical Plants, HVAC Systems, and Process Industries
