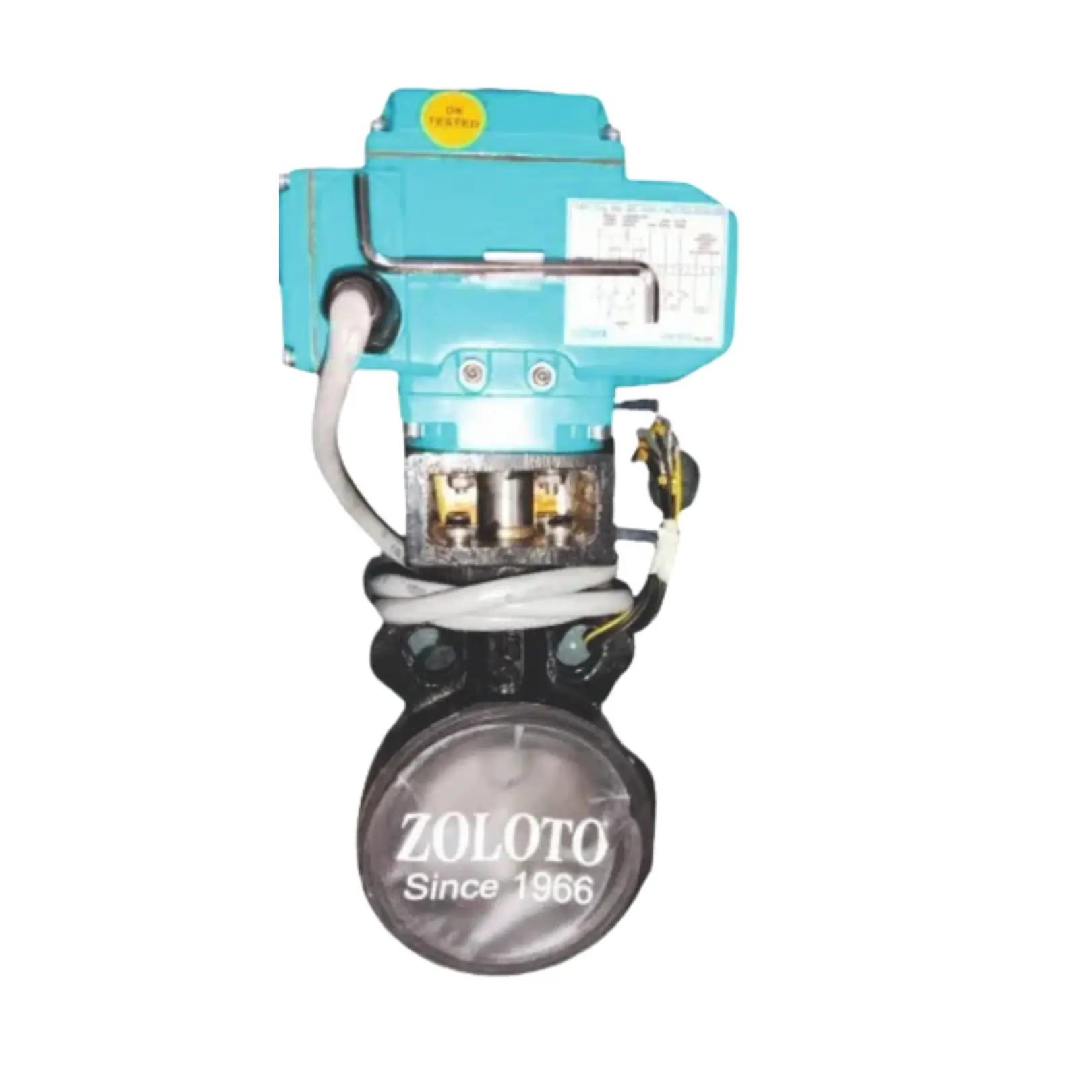

Electric Actuator Operated Butterfly Valve

Electric Actuator Operated Butterfly Valve

The Electric Actuator Operated Butterfly Valve is a precision-engineered flow control device designed for automated operation in industrial piping systems. It combines a butterfly valve with an electric actuator, allowing remote and accurate control of fluid flow through electrical signals. This setup eliminates manual intervention, ensuring efficient, reliable, and consistent performance in various industrial applications.

Constructed from high-quality materials such as cast iron, ductile iron, or stainless steel, this valve provides excellent corrosion resistance, tight shut-off, and long service life. The electric actuator offers features such as position indication, manual override, and torque protection, making it ideal for process automation systems in water treatment, HVAC, chemical, and power industries.

Key Features

• Type: Electric Actuator Operated Butterfly Valve

• Size Range: 40mm to 600mm (1½” to 24”)

• Body Material: Cast Iron / Ductile Iron / Stainless Steel

• Disc Material: SS 304 / SS 316 / DI / Aluminum Bronze

• Seat Material: EPDM / Nitrile / Viton / PTFE

• Actuator Type: On/Off or Modulating Type

• Voltage Options: 24V DC / 110V AC / 230V AC / 415V AC

• Pressure Rating: PN10 / PN16 / ANSI Class 150

• Temperature Range: Up to 120°C

• End Connection: Wafer / Lug Type

• Operation: Fully Automated (Electric Actuation with Manual Override)

• Applications: HVAC Systems, Water Treatment Plants, Fire Fighting Networks, Chemical Processing Units, and Industrial Pipelines
