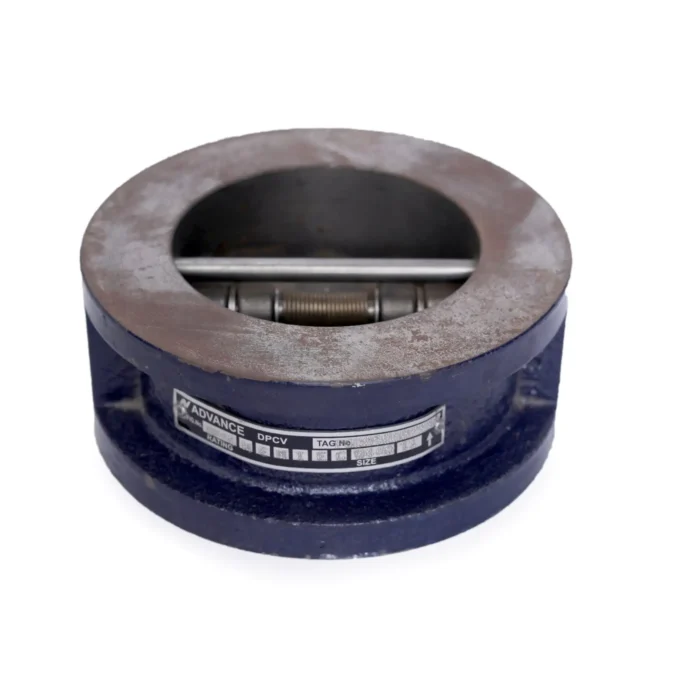

Advance Dual Plate Check Valve

Advance Dual Plate Check Valve

The Advance Dual Plate Check Valve is a compact and efficient non-return valve designed to prevent backflow in piping systems. It features a dual spring-loaded disc design that allows forward flow and automatically closes to prevent reverse flow, ensuring system safety and reliability.

Constructed from high-quality cast iron, ductile iron, or stainless steel, the valve offers exceptional strength, corrosion resistance, and long service life. Its wafer-type design allows easy installation between flanges, saving space and reducing weight compared to conventional swing check valves.

The Advance Dual Plate Check Valve is ideal for use in HVAC systems, water distribution, fire protection, and industrial pipelines, offering low-pressure drop, tight sealing, and minimal maintenance.

Key Features

• Type: Dual Plate Check Valve (Non-Return Valve)

• Brand: Advance

• Body Material: Cast Iron / Ductile Iron / Stainless Steel

• Disc Material: Stainless Steel / Aluminum Bronze

• Seat Material: Nitrile / EPDM / Metal Seated

• Design Type: Wafer Type

• End Connection: Sandwich Type Between Flanges

• Pressure Rating: PN10 / PN16 / Class 150

• Temperature Range: -10°C to 120°C

• Operation: Automatic (Spring Loaded Dual Plate)

• Applications: HVAC Systems, Water Supply Lines, Fire Fighting Networks, Industrial Piping Systems, and Process Plants
