Advance Butterfly Valve

Advance Butterfly Valve

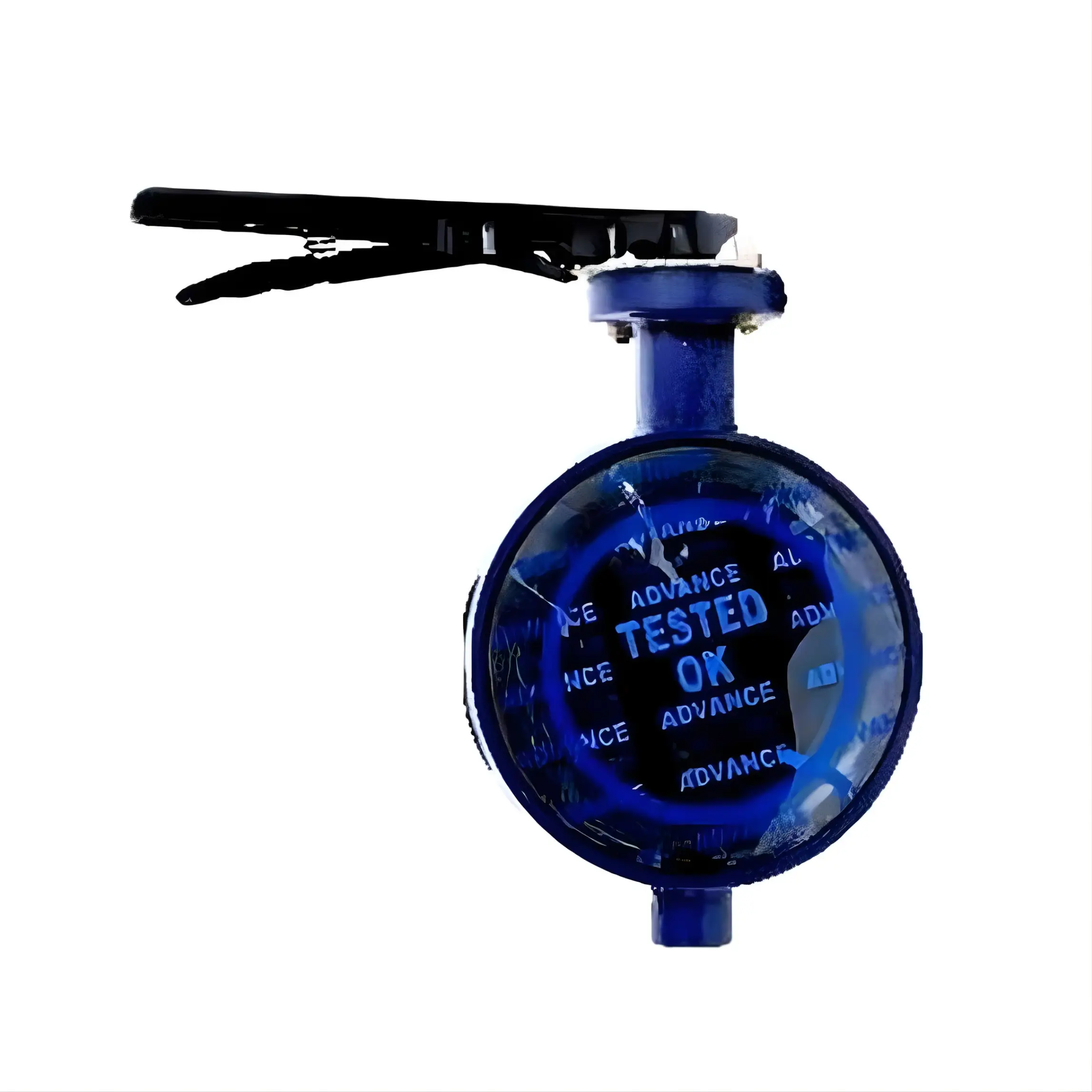

The Advance Butterfly Valve is a high-performance flow control device designed for reliable isolation and regulation of liquids and gases in HVAC, water treatment, and industrial piping systems. Known for its compact design, smooth operation, and long service life, this valve offers an efficient solution for handling large volumes of fluid with minimal pressure drop.

Manufactured from premium-grade cast iron, ductile iron, or stainless steel, the Advance Butterfly Valve ensures excellent corrosion resistance and mechanical strength. It features a rubber-lined or PTFE seat for tight sealing and a disc design that provides smooth, low-torque operation. The valve can be operated manually using a lever or gearbox, and can also be automated with electric or pneumatic actuators for advanced control applications.

Ideal for water distribution, fire protection, HVAC systems, and industrial pipelines, the Advance Butterfly Valve delivers consistent performance even under high pressure and temperature conditions.

Key Features

• Type: Butterfly Valve

• Brand: Advance

• Size Range: 40mm to 600mm (Custom Sizes Available)

• Body Material: Cast Iron / Ductile Iron / Stainless Steel

• Disc Material: Stainless Steel / Cast Iron / Aluminum Bronze

• Seat Material: EPDM / NBR / PTFE

• End Connection: Wafer / Lug / Flanged Type

• Operation: Lever, Gear, Electric, or Pneumatic Actuation

• Pressure Rating: PN10 / PN16

• Temperature Range: -10°C to 120°C (Depending on Seat Material)

• Application: HVAC Systems, Water Treatment, Firefighting Systems, Industrial Piping, and Process Plants
