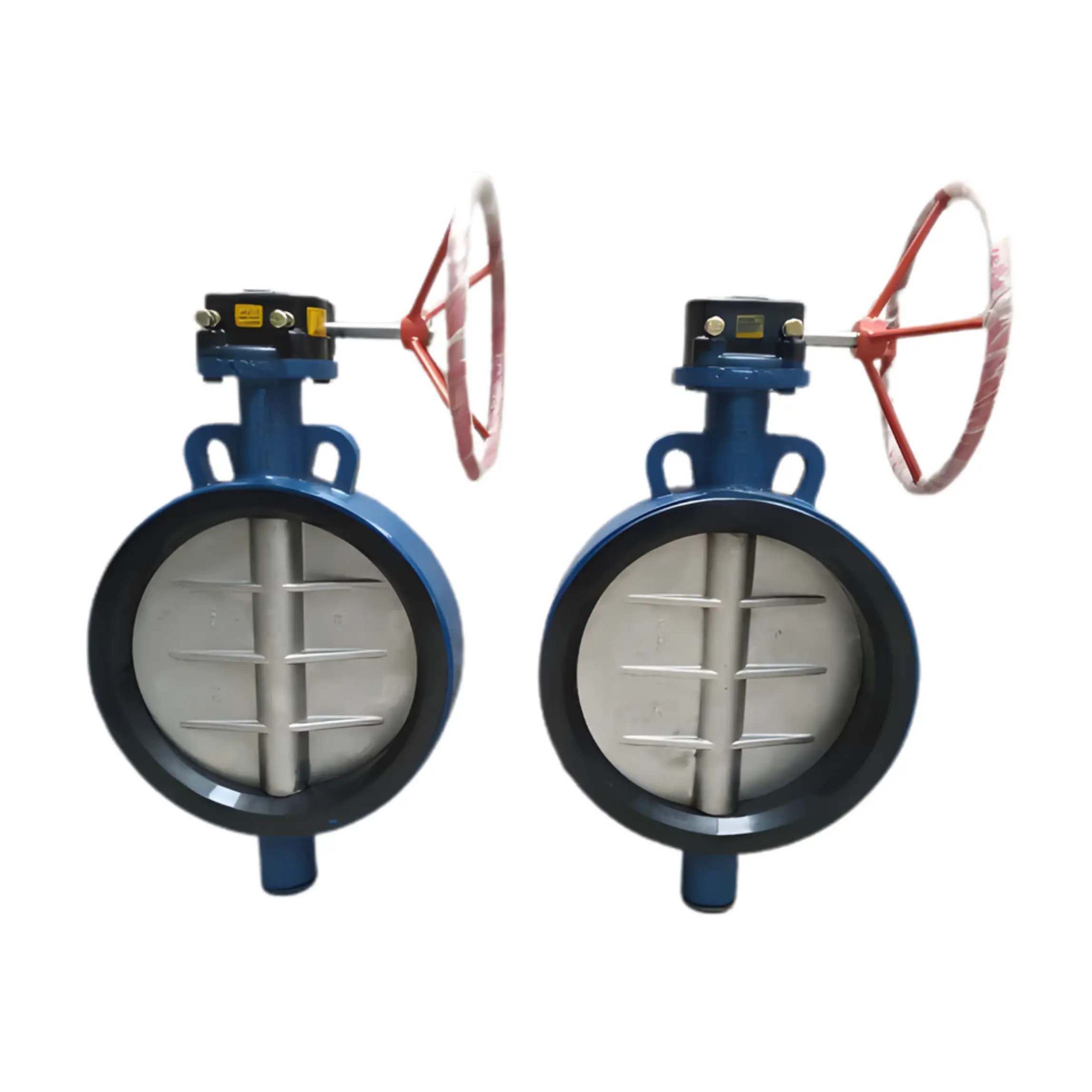

Wave Butterfly Valve

Wave Butterfly Valve

The WAVE Butterfly Valve is a durable, high-performance flow control valve designed for efficient shut-off and regulation of fluids in industrial pipelines. Its compact wafer-type design ensures easy installation between standard flanges, making it suitable for space-constrained applications while maintaining excellent sealing and reliability.

Manufactured using superior-grade materials such as cast iron, ductile iron, or stainless steel, the WAVE Butterfly Valve provides excellent corrosion resistance, smooth operation, and long service life. The precision-engineered disc and elastomer-lined seat ensure bubble-tight sealing, even under high-pressure and temperature conditions.

The valve can be operated manually via a lever or gearbox, or automated with a pneumatic or electric actuator, making it ideal for both manual and automated fluid control systems. It is widely used in HVAC, water treatment, chemical processing, fire protection, and industrial pipelines.

Key Features

• Type: Wafer / Lug Type Butterfly Valve

• Size Range: 40mm to 600mm (1½” to 24”)

• Material: Cast Iron / Ductile Iron / Stainless Steel

• Disc Material: SS 304 / SS 316 / DI / Aluminum Bronze

• Seat Material: EPDM / Nitrile / Viton / PTFE

• Pressure Rating: PN10 / PN16

• Temperature Range: Up to 120°C

• End Connection: Wafer / Lug Type (Fits between Flanges)

• Operation: Lever / Gearbox / Pneumatic / Electric Actuator

• Applications: Water Supply, HVAC Systems, Chemical Plants, Fire Fighting Systems, and General Industrial Use
