C I Sluice Valve 50 mm

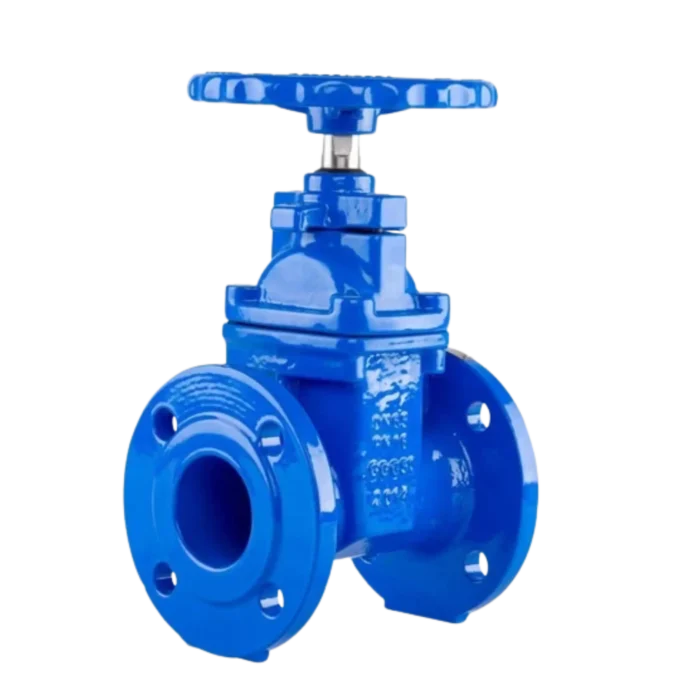

C.I. Sluice Valve 50mm

The C.I. Sluice Valve 50mm is a heavy-duty isolation valve designed for reliable shutoff in water supply, irrigation, and industrial piping systems. Constructed from high-quality cast iron (C.I.), it offers excellent durability, corrosion resistance, and long service life, making it suitable for both above-ground and underground installations.

This 50mm sluice valve operates through a rising or non-rising spindle mechanism, providing smooth and precise control over fluid flow. It ensures a tight seal when closed, minimizing leakage and maintaining consistent system pressure.

Ideal for use in water distribution networks, sewage treatment plants, and fire protection systems, the valve is built to comply with IS:14846 / BS standards, ensuring reliable performance under varying pressure and temperature conditions.

Key Features

• Type: Sluice Valve (Gate Valve Type)

• Size: 50mm (2 Inch)

• Body Material: Cast Iron (C.I.)

• Bonnet Material: Cast Iron

• Seat Material: Bronze / Gunmetal / Rubber Lined

• End Connection: Flanged (PN10 / PN16)

• Operation: Handwheel Operated

• Pressure Rating: Up to 16 Bar (PN16)

• Temperature Range: 0°C to 120°C

• Standard Compliance: IS:14846 / BS:5163

• Design Type: Rising / Non-Rising Spindle (As Required)

• Applications: Water Supply Lines, Irrigation Networks, Firefighting Systems, Sewage Plants, and Industrial Pipelines
