Cast Iron Reflux Valves

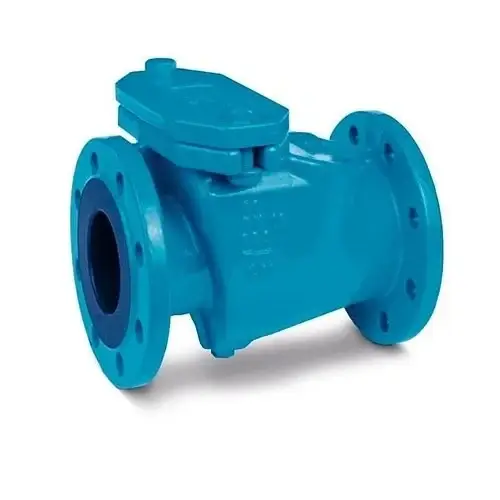

Cast Iron Reflux Valve

The Cast Iron Reflux Valve, also known as a Non-Return Valve (NRV), is a robust and reliable valve designed to allow fluid flow in one direction only and automatically prevent reverse flow in pipelines. Manufactured from high-quality cast iron, this valve ensures durability, corrosion resistance, and smooth operation even under continuous use.

It operates using a swing-type or lift-type disc mechanism that opens under forward pressure and closes automatically when the flow reverses, protecting pumps and pipelines from potential damage. The flanged-end design ensures easy installation and secure connection in water supply, sewage, and industrial systems.

Key Features

• Type: Reflux Valve / Non-Return Valve

• Material: Cast Iron (C.I.)

• Size Range: 50mm to 600mm (Custom Sizes Available)

• Design Type: Swing Type / Lift Type

• End Connection: Flanged (PN10 / PN16)

• Pressure Rating: Up to 16 Bar

• Temperature Range: 0°C to 120°C

• Seat Material: Bronze / Rubber / Metal Seated

• Operation: Automatic (Self-Actuating)

• Applications: Water Supply Systems, Sewage Lines, Pumping Stations, Firefighting Systems, and Industrial Pipelines
