2 Way Solenoid Valve

2 Way Solenoid Valve

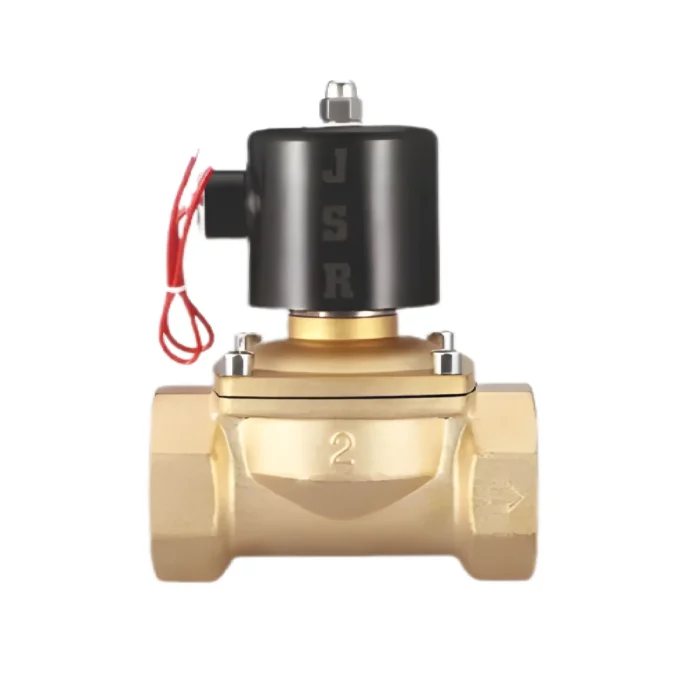

The 2 Way Solenoid Valve is an electromechanically operated valve designed to control the flow of liquids or gases automatically. It features two ports — an inlet and an outlet — allowing flow in one direction when energized and stopping flow when de-energized. Compact, fast-acting, and reliable, this valve is ideal for automation systems requiring precise fluid control.

Manufactured from durable materials such as brass, stainless steel, or plastic, the 2 Way Solenoid Valve ensures long service life and compatibility with various media, including air, water, oil, and steam. It is widely used in HVAC systems, water treatment plants, pneumatic systems, and industrial process control applications.

Key Features

• Type: 2 Way Normally Closed / Normally Open Solenoid Valve

• Port Size: ¼” to 2” (8mm to 50mm)

• Body Material: Brass / Stainless Steel / Engineering Plastic

• Seal Material: NBR / Viton / EPDM / PTFE

• Pressure Range: 0 to 10 Bar (Depending on Model)

• Temperature Range: -10°C to 120°C

• Coil Voltage Options: 12V DC / 24V DC / 110V AC / 230V AC

• Operation: Direct Acting or Pilot Operated

• Media: Air, Water, Oil, Gas, Steam

• Connection Type: Threaded (BSP/NPT)

• Applications: Water Supply, Air Compressors, Automation Systems, Industrial Equipment, and HVAC Controls
