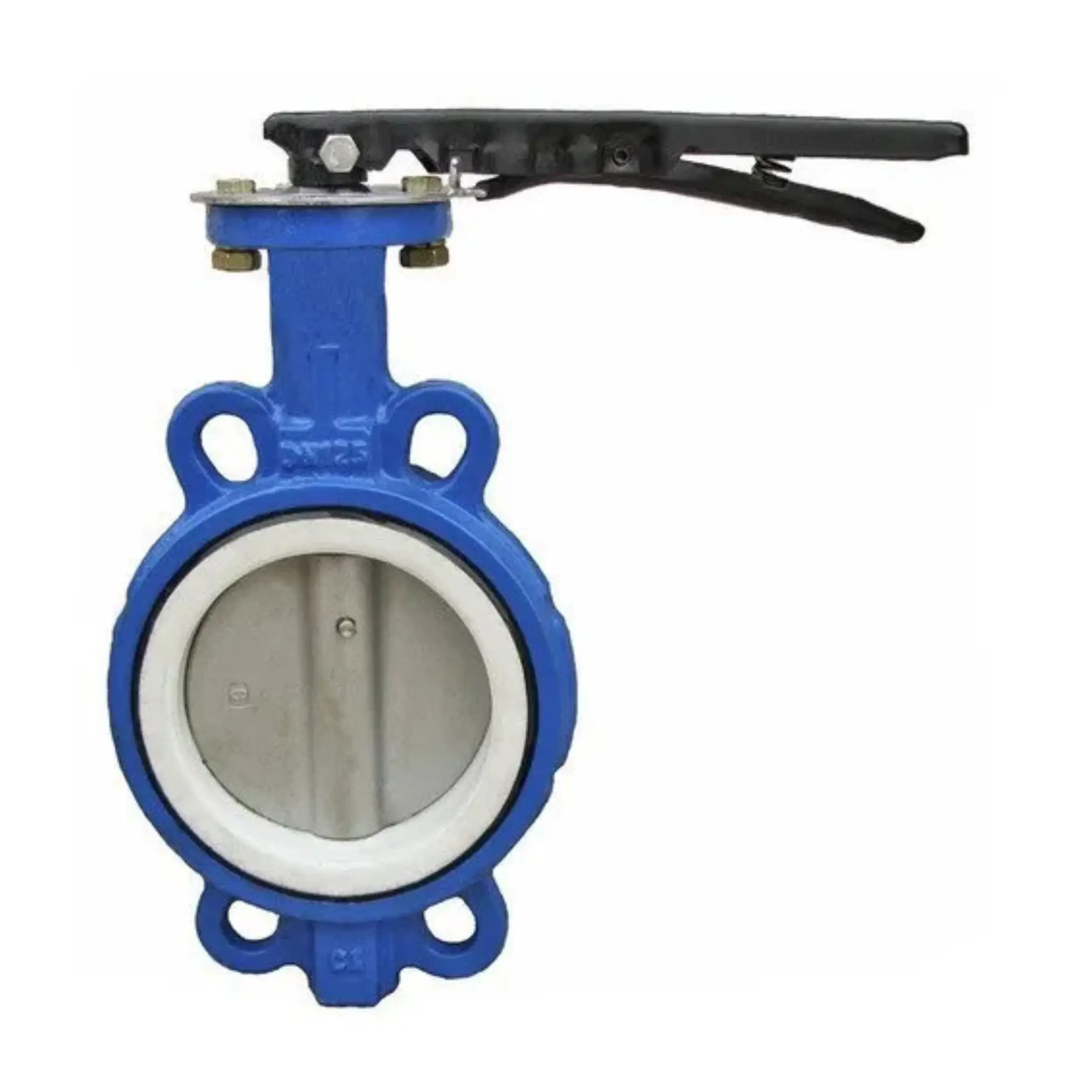

Slimseal Butterfly Valve

Slimseal Butterfly Valve

The Slimseal Butterfly Valve is a compact, high-performance valve designed for reliable shut-off and flow regulation in pipelines. Its slim, wafer-type design allows easy installation between flanges, making it ideal for space-constrained applications. Engineered for long-lasting performance, the valve ensures tight sealing and smooth operation even under high-pressure and high-temperature conditions.

Manufactured from high-grade materials such as cast iron, ductile iron, or stainless steel, the Slimseal Butterfly Valve features a centrally-mounted disc and elastomer-lined body for bubble-tight sealing. The valve can be operated manually with a lever or gearbox, or automated with a pneumatic or electric actuator, depending on system requirements.

Suitable for use in HVAC, water treatment, fire protection, chemical, and process industries, the Slimseal Butterfly Valve delivers low torque operation, minimal maintenance, and excellent corrosion resistance.

Key Features

• Type: Wafer / Lug Type Slimseal Butterfly Valve

• Size Range: 40mm to 600mm (1½” to 24”)

• Material: Cast Iron / Ductile Iron / Stainless Steel

• Disc Material: SS 304 / SS 316 / DI / Aluminum Bronze

• Seat Material: EPDM / Nitrile / Viton / PTFE

• Pressure Rating: PN10 / PN16

• Temperature Range: Up to 120°C (Standard)

• Operation: Lever, Gearbox, Pneumatic or Electric Actuator

• Connection Standard: ISO 5211 / BS / ANSI / DIN

• Applications: HVAC, Water Supply, Fire Fighting, Chemical Plants, and Industrial Pipelines
