Suction Guide

Suction Guide

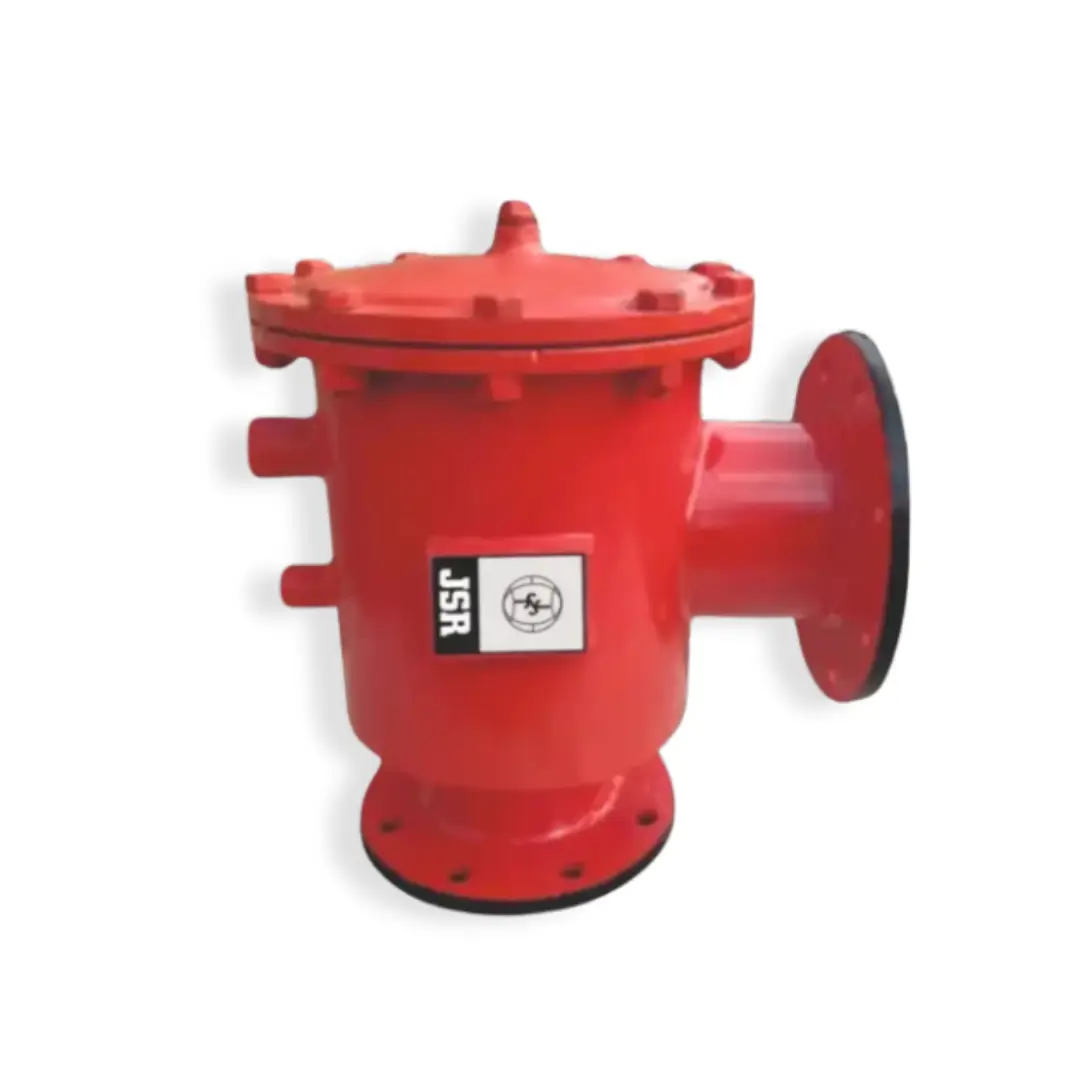

Suction Guide is a multifunctional pipeline fitting designed to be installed at the suction side of pumps to ensure smooth, stable, and efficient fluid flow. It combines the functions of flow conditioning, air separation, and debris protection, helping to improve pump performance and extend equipment life.

Manufactured from high-quality mild steel or cast iron, suction guides are built for strength, durability, and long-term reliability in demanding operating conditions. The specially designed internal vanes straighten and stabilize incoming flow, while the enlarged body reduces turbulence and pressure drop. An integrated chamber allows entrained air or gases to separate and escape through a vent connection, protecting pumps from cavitation and vibration.

Suction guides are widely used in HVAC systems, water supply lines, chilled and hot water circulation systems, and industrial process pipelines. By ensuring uniform flow into the pump, they improve efficiency, reduce noise, and minimize maintenance requirements.

Key Features

• Product Type: Suction Guide

• Body Material: Mild Steel / Cast Iron

• Connection Type: Flanged

• Function: Flow Conditioning & Air Separation

• Installation Position: Pump Suction Side

• Flow Direction: Horizontal / Vertical

• Applications: HVAC Systems, Water Supply Lines, Hot & Chilled Water Systems, Industrial Pipelines

• Benefits: Improved Pump Efficiency, Reduced Cavitation, Lower Noise & Vibration, Extended Pump Life

• Country of Origin: Made in India
