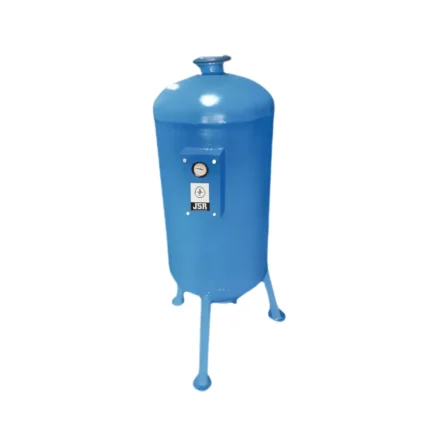

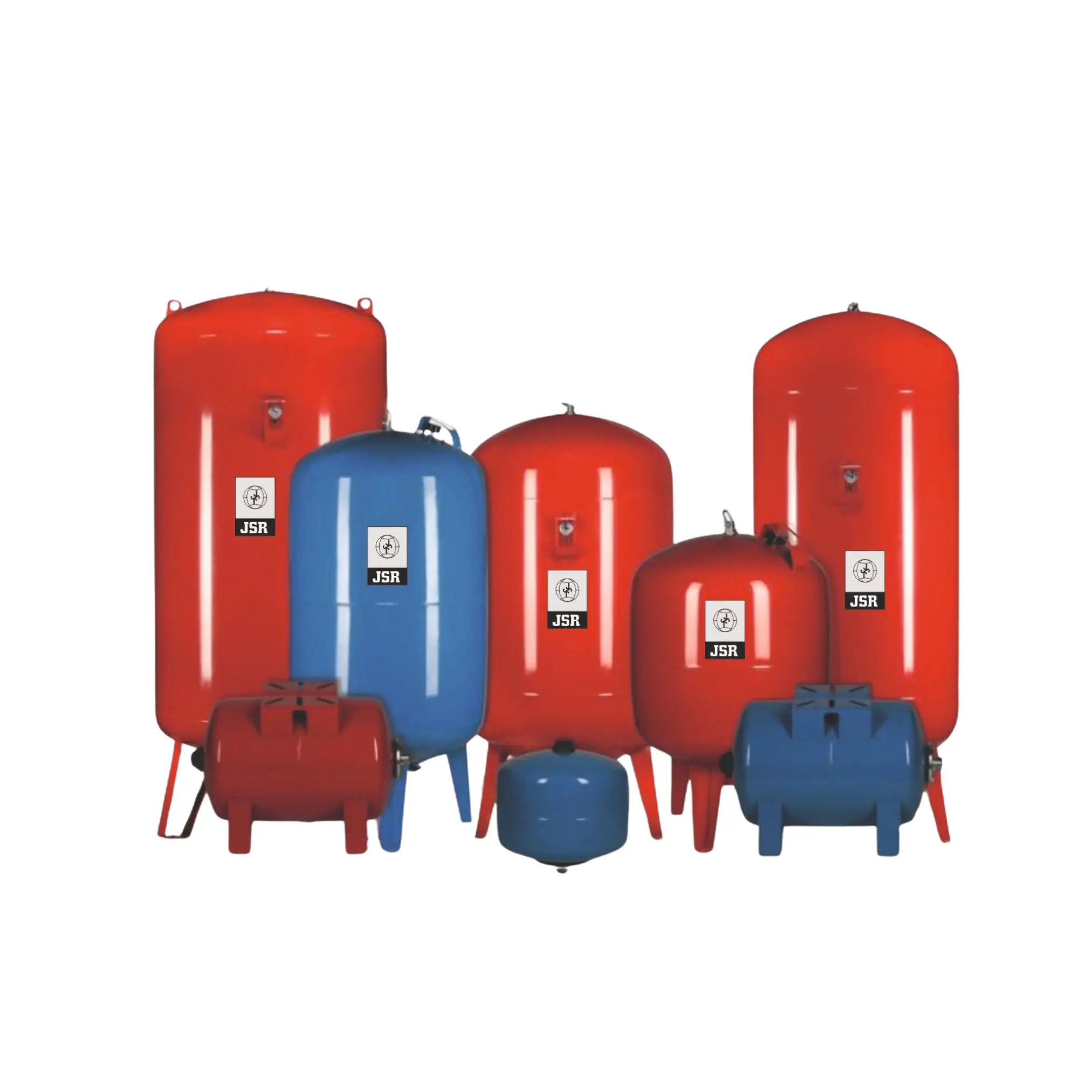

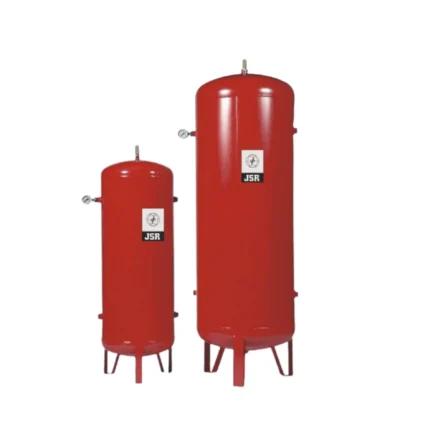

Closed Expansion Tank

Closed Expansion Tank

The Closed Expansion Tank is a pressure-regulating vessel designed to absorb the expansion of water as it heats up in closed-loop systems. It helps maintain consistent pressure, prevents overloading of pipes and valves, and reduces water hammer effects in heating, cooling, and water supply systems.

Manufactured from high-quality mild steel or stainless steel, this expansion tank ensures durability, corrosion resistance, and long service life. It comes equipped with a flexible diaphragm or air cushion that separates air and water, maintaining system balance and preventing pressure fluctuations.

Technical Specifications

• Product Name: Closed Expansion Tank

• Material: Mild Steel / Stainless Steel (SS 304 / SS 316)

• Design Type: Sealed / Diaphragm Type

• Capacity Range: 50 Litres to 10,000 Litres (Customizable)

• Working Pressure: Up to 10 Bar / PN10

• Temperature Range: Up to 100°C

• Orientation: Vertical / Horizontal

• Finish: Epoxy Painted / Powder Coated / Polished

• Connection Type: Flanged / Threaded

• Country of Origin: Made in India
