Vertical Air Vessel Tank
| Attribute | Details |
|---|---|
| Capacity | 300 L |
| Max Design Pressure | 10 bar |
| Material | Mild Steel |
| Vessel Dimensions | Vertical |
| Finishing | Smooth |
| Usage/Application | Water |
| Country of Origin | Made in India |

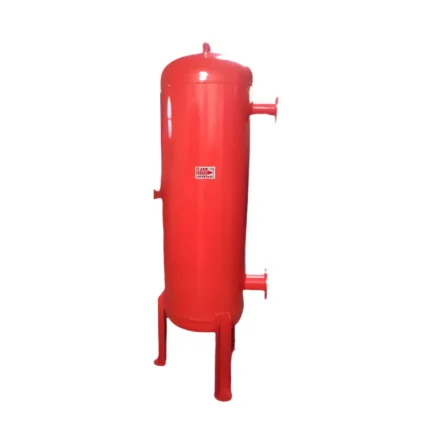

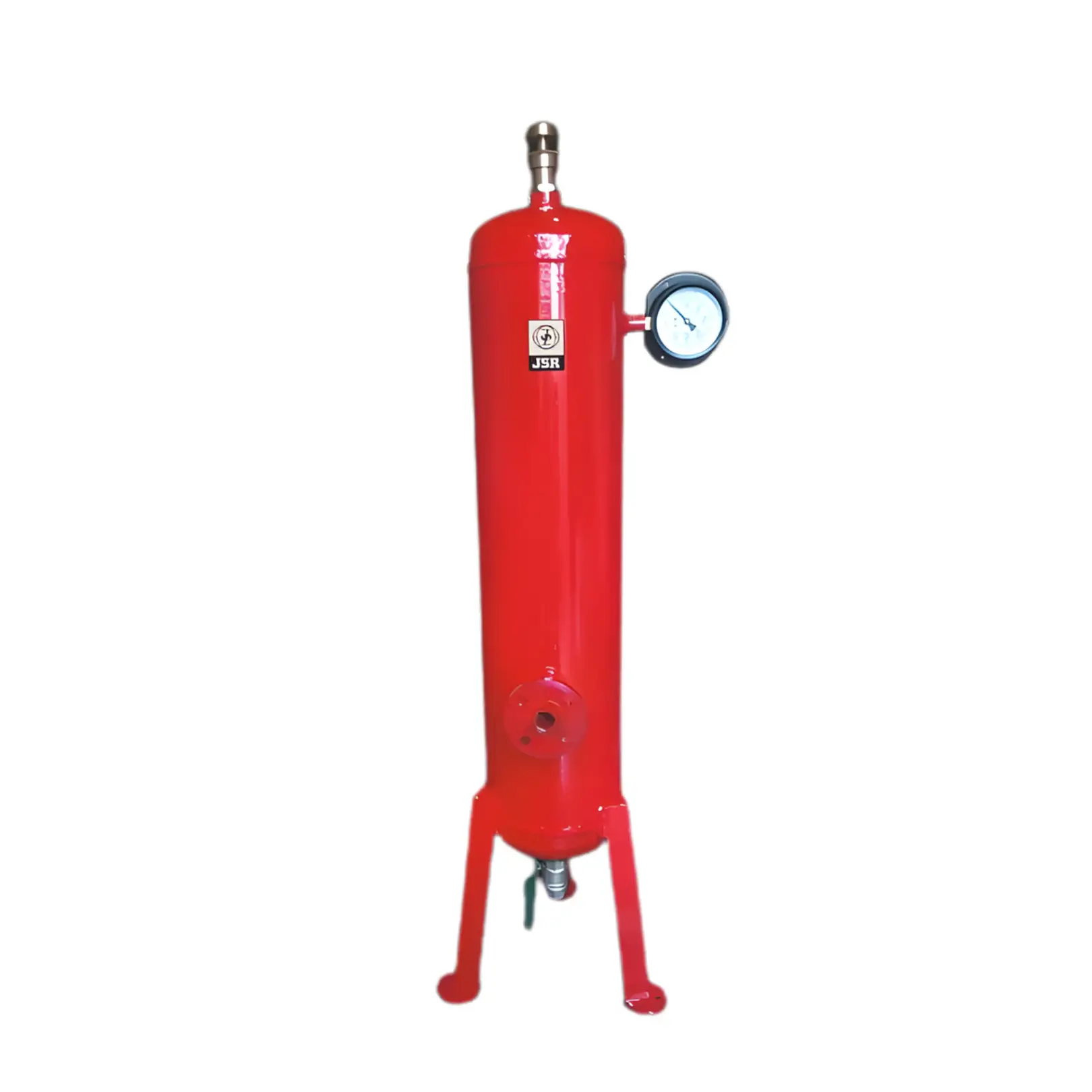

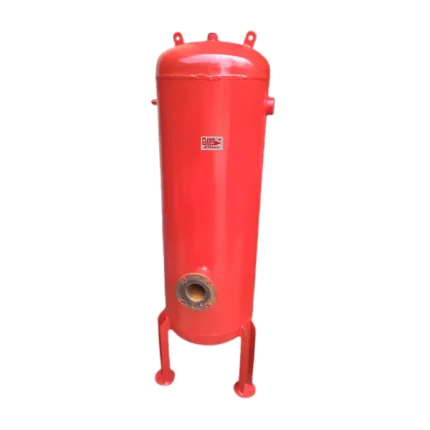

Vertical Air Vessel Tank
The Vertical Air Vessel Tank is a robust and high-performance pressure vessel designed to maintain system pressure, absorb water hammer, and ensure smooth flow in fluid handling systems. Manufactured from premium-quality mild steel or stainless steel, this vertical tank is engineered for reliability, durability, and safe operation under varying pressure conditions.
The vertical design ensures space efficiency and easy installation in limited areas, making it ideal for booster pump systems, HVAC, water treatment, and industrial applications. It comes equipped with air charging valves, pressure gauges, and flanged connections for convenient use and maintenance.
Technical Specifications
-
Product Name: Vertical Air Vessel Tank
-
Orientation: Vertical
-
Material: Mild Steel / Stainless Steel (SS 304 / SS 316)
-
Capacity Range: 50 Litres to 10,000 Litres (Customizable)
-
Pressure Rating: PN10 / PN16 / 10 Bar / 16 Bar
-
Temperature Range: Up to 100°C
-
Design Standard: ASME / IS Codes
-
End Connection: Flanged
-
Finish: Epoxy Painted / Powder Coated / Polished
-
Accessories: Pressure Gauge, Air Release Valve, Drain Valve (Optional)
-
Country of Origin: Made in India
